ACSR-Aluminium Conductor Steel Reinforced

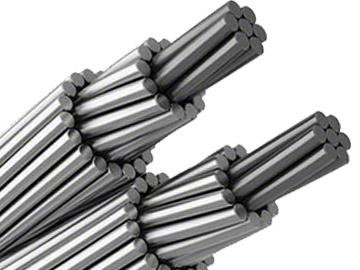

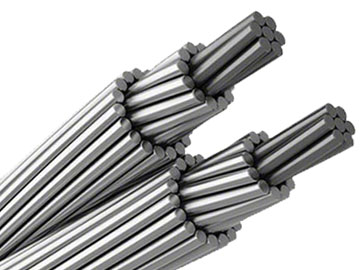

ACSR Introduction is a kind of concentric-lay-stranded conductors made from round aluminium 1350-H19 (extra hard) wires and round coated steel core wires.

The core can be single wire or stranded depending on the required size. Steel core is available in Class A B or C galvanization for corrosion protection and different tensile requirements.

Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease.


ACSR Features With simple structure ACSR is easy to set up and maintainLow cost and high transmission capacity High mechanical strengthhigh tensile strength.

The principal advantage are their high tensile strength and light weightcovering longer spans with less supports. Due to the greater diameter of an ACSR conductor much

higher corona limit can be obtained giving a big advantage on high and extra highvoltage overhead lines.


ACSR Application ACSR is available in a range of steel strengths varying from 6% up to 40% mainly for power transmission and distribution line.

The higher strength ACSR conductors are used for river crossings overhead earth wiresand installations involving extra long spans. Against any given resistance

of conductorACSR conductor may be manufactured to have different tensile strengths as per requirement.
