Aerial Bundled Conductor Cable

Aerial Bundled Conductor Cable (ABC) 600/1 000V

Medium Voltage ABC cable range: 3.8/6.6kV, 6.35/11kV, 12.7/22kV , 19/33kV

Cable Sizes:25mm² 35mm²; 50mm²; 70mm², 95mm² , 120mm², 150mm² and 185 mm²

Supplier and Manufacturer in China

Send E-mail Get Price Now

Low Voltage AERIAL BUNDLED CONDUCTOR - ABC Power Cable

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.

Cable Sizes: 25mm², 35mm², 50mm², 70mm², 95mm², 120mm² and 150mm²

Construction: 1, 2 or 3 Phase cores + Bare Support / neutral Al Alloy + optional 25mm² Street light.

Construction: 1, 2 or 3 Phase cores + Insulated Support / neutral Al Alloy + optional 25mm² Street light

1, 2 or 3 Phase cores + Insulated neutral Aluminium + optional 25mm² Street light.

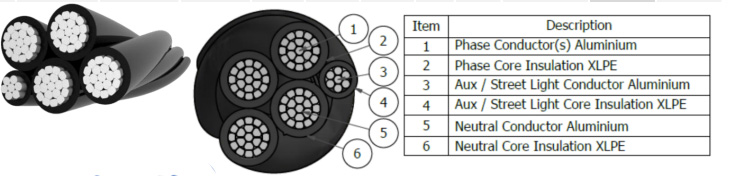

Aerial Bundle Conductor Self support.jpg

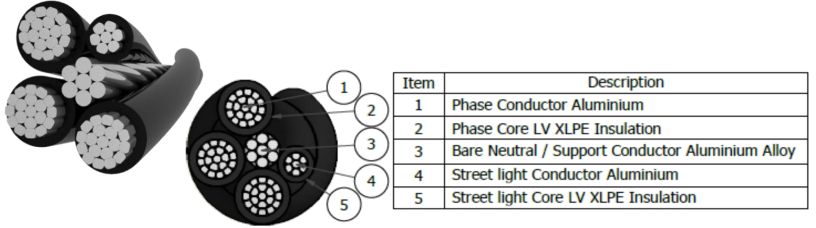

Aerial Bundle Conductor Bare Alloy Support.png

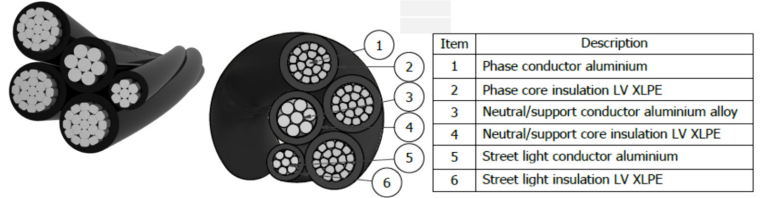

Aerial Bundle Conductor Alloy support.png

Medium Voltage ABC cable range: 3.8/6.6kV, 6.35/11kV, 12.7/22kV, 19/33kV：

Conductors: Aluminium Cable

Sizes: Type A : 95 – 185 mm² (3.8/6,6kV, 6.35/11kV, 12.7/22kV, 19/33kV)

Type B : 35 – 185 mm² (3.8/6,6kV, 6.35/11kV, 12.7/22kV)

: 50 – 185 mm² (19/33kV)

Construction: 3 Core, Circular Aluminium Stranded Conductor, XLPE Insulated, Individually Copper tape screened, FR PVC Sheathed + Steel catenary - FR PVC Sheathed

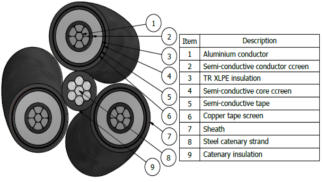

mv abc china.jpg abc china.png

SANS 1418 Aerial Bundled Cable

Cross Section	Nominal Overall Diameter	Nominal Weight	Minimum Bending Radius	Maximum Current Rating Air 30 ºC	Voltage Drop Cos φ= 0,8
nc x mm²	mm	kg/km	mm	A	V/A.km
AL 16/2	14,6	135	215	81	3,489
AL 25/2	20,5	200	300	109	2,226
AL 35/3+16A+54,6N	30,7	705	440	120	1,632
AL 35/3+25A+54,6N	33,4	740	450	120	1,632
AL 50/3+54,6N	30,3	735	440	150	1,229
AL 50/3+16A+54,6N	32,7	800	500	150	1,229
AL 50/3+2x16A+54,6N	36,7	890	540	150	1,229
AL 50/3+25A+54,6N	33,4	840	510	150	1,229
AL 70/3+16A+54,6N	37,9	1.035	560	190	0,860
AL 70/3+2x16A+54,6N	43,9	1.120	650	190	0,860
AL 70/3+25A+54,6N	39,9	1.070	590	190	0,860
AL 95/3+54,6N	36,7	1.185	540	230	0,652
AL 95/3+2x16A+54,6N	48,4	1.345	720	230	0,652
AL 95/3+25A+54,6N	43,9	1.285	650	230	0,652
AL 120/3+25A+54,6N	47,7	1.492	710	273	0,504
AL 150/3+2x16A+54,6N	57,1	1.795	850	305	0,446
AL 150/3+2×95	52,6	2.080	770	305	0,446
AL 16/4	20,3	266	300	81	3,489
AL 25/4	24,2	404	360	109	2,226
AL 50/4+25A	34,3	795	515	150	1,229
AL 70/4+25A	42,5	1.104	580	190	0,860
AL 95/4+25A	44,3	1.410	640	230	0,652
AL 95/4+2x16A	48,4	1.419	720	230	0,652
AL 120/4	43,2	1.562	640	273	0,504
AL 120/4+2x16A	52,6	1.695	780	273	0,504

Type 1: Self-supporting

Nominal Cross Section	Phase(AAC+UV-XLPE)					Approx.Overall Diameter	Max. D.C. Resistance of Conductor at 20℃
	Compact Conductor		UV-XLPE Insulation
	No.of Individual Wires	Nominal Overall Diameter	Nominal Thickness	Min. Thickness	Nominal Diameter
No. X mm2	-	mm	mm	mm	mm	mm	Ω`/km
4 X 16	7	4.8	1.2	0.98	7.2	17.42	1.91
4 X 25	7	6.0	1.4	1.16	8.8	21.3	1.2
4 X 35	7	7.0	1.6	1.34	10.2	24.68	0.868
4 X 50	7	8.3	1.6	1.34	11.5	27.83	0.641
4 X 70	19	10.0	1.8	1.52	13.6	32.91	0.443
4 X 95	19	11.6	1.8	1.52	15.2	36.78	0.32
4 X 120	19	13.0	1.8	1.52	16.6	40.17	0.253
4 X 150	19	14.6	1.8	1.52	18.2	44.04	0.206
3 X 16	7	4.8	1.2	0.98	7.2	15.55	1.91
3 X 25	7	6.0	1.4	1.16	8.8	19.01	1.2
3 X 35	7	7.0	1.6	1.34	10.2	22.03	0.868
3 X 50	7	8.3	1.6	1.34	11.5	24.84	0.641
3 X 70	19	10.0	1.8	1.52	13.6	29.38	0.443
3 X 95	19	11.6	1.8	1.52	15.2	32.83	0.32
3 X 120	19	13.0	1.8	1.52	16.6	35.86	0.253
3 X 150	19	14.6	1.8	1.52	18.2	39.31	0.206
2 X 16	7	4.8	1.2	0.98	7.2	14.4	1.91
2 X 25	7	6.0	1.4	1.16	8.8	17.6	1.2
2 X 35	7	7.0	1.6	1.34	10.2	20.4	0.868
2 X 50	7	8.3	1.6	1.34	11.5	23	0.641
2 X 70	19	10.0	1.8	1.52	13.6	27.2	0.443
2 X 95	19	11.6	1.8	1.52	15.2	30.4	0.32
2 X 120	19	13.0	1.8	1.52	16.6	33.2	0.253
2 X 150	19	14.6	1.8	1.52	18.2	36.4	0.206
1 X 16	7	4.8	1.2	0.98	7.2	7.2	1.91
1 X 25	7	6.0	1.4	1.16	8.8	8.8	1.2
1 X 35	7	7.0	1.6	1.34	10.2	10.2	0.868
1 X 50	7	8.3	1.6	1.34	11.5	11.5	0.641
1 X 70	19	10.0	1.8	1.52	13.6	13.6	0.443
1 X 95	19	11.6	1.8	1.52	15.2	15.2	0.32
1 X 120	19	13.01	1.8	1.52	16.6	16.6	0.253
1 X 150	19	14.6	1.8	1.52	18.2	18.2	0.206

Type 2: Phase +Supporting

Nominal Section Area		Phase(AAC+UV-XLPE)			Supporting(AAAC+UV-XLPE)		Approx. Overall Diameter
Phase (AAC+UV-XLPE)	Supporting （AAAC+UV-XLPE）	Compact Conductor		UV-XLPE Insulation	Conductor	UV-XLPE Insulation
Phase (AAC+UV-XLPE)	Supporting （AAAC+UV-XLPE）	No.of Individual Wires	Nominal Diameter	Nominal Thickness	No./Dia.of Wires	Nominal Thickness
No. X mm2	No. X mm2	-	mm	mm	No./mm	mm	mm
3 X 16	1 X 54.6	7	4.8	1.2	7/3.15	1.6	20.72
3 X 25	1 X 54.6	7	6	1.4	7/3.15	1.6	23.63
3 X 35	1 X 54.6	7	7	1.6	7/3.15	1.6	26.17
3 X 50	1 X 54.6	7	8.3	1.6	7/3.15	1.6	28.53
3 X 70	1 X 54.6	19	10	1.8	7/3.15	1.6	32.34
3 X 95	1 X 54.6	19	11.6	1.8	7/3.15	1.6	35.24
3 X 120	1 X 54.6	19	13	1.8	7/3.15	1.6	37.78
3 X 150	1 X 54.6	19	14.6	1.8	7/3.15	1.6	40.69
3 X 16	1 X 70	7	4.8	1.2	7/3.5	1.6	21.36
3 X 25	1 X 70	7	6	1.4	7/3.5	1.6	24.26
3 X 35	1 X 70	7	7	1.6	7/3.5	1.6	26.8
3 X 50	1 X 70	7	8.3	1.6	7/3.5	1.6	29.16
3 X 70	1 X 70	19	10	1.8	7/3.5	1.6	32.97
3 X 95	1 X 70	19	11.6	1.8	7/3.5	1.6	35.88
3 X 120	1 X 70	19	13	1.8	7/3.5	1.6	38.42
3 X 150	1 X 70	19	14.6	1.8	7/3.5	1.6	41.32

Type 3: Phase+Supporting+ Street Lighting

Nominal Section Area			Phase			Supporting		Service Connection			Approx.Overall Diameter
Phase (AAC+XLPE)	Supporting (AAAC+XLPE)	Service Connection (AAC+XLPE)	Compact Conductor		UV-XLPE	Conductor	UV-XLPE	Compact Conductor		UV-XLPE
Phase (AAC+XLPE)	Supporting (AAAC+XLPE)	Service Connection (AAC+XLPE)	No.of Al.Wire	Overall Dia.	Normal Thickness	No./Dia.of Alloy Wires	Normal Thickness	No. of Al. Wire	Overall Dia.	NominalThickness
No.Xmm2	No.Xmm2	No.Xmm2	-	mm	mm	No./mm	mm	-	mm	mm	mm
3 X 16	1 X 54.6	1 X 25	7	4.8	1.2	7/3.15	1.6	7	6.0	1.4	27.05
3 X 25	1 X 54.6	1 X 25	7	6.0	1.4	7/3.15	1.6	7	6.0	1.4	30.25
3 X 35	1 X 54.6	1 X 25	7	7.0	1.6	7/3.15	1.6	7	6.0	1.4	33.05
3 X 50	1 X 54.6	1 X 25	7	8.3	1.6	7/3.15	1.6	7	6.0	1.4	35.65
3 X 70	1 X 54.6	1 X 25	19	10.0	1.8	7/3.15	1.6	7	6.0	1.4	39.85
3 X 95	1 X 54.6	1 X 25	19	11.6	1.8	7/3.15	1.6	7	6.0	1.4	43.05
3 X 120	1 X 54.6	1 X 25	19	13.0	1.8	7/3.15	1.6	7	6.0	1.4	45.85
3 X 150	1 X 54.6	1 X 25	19	14.6	1.8	7/3.15	1.6	7	6.0	1.4	49.05
3 X 16	1 X 54.6	2 X 25	7	4.8	1.2	7/3.15	1.6	7	6.0	1.4	27.05
3 X 25	1 X 54.6	2 X 25	7	6.0	1.4	7/3.15	1.6	7	6.0	1.4	30.25
3 X 35	1 X 54.6	2 X 25	7	7.0	1.6	7/3.15	1.6	7	6.0	1.4	33.05
3 X 50	1 X 54.6	2 X 25	7	8.3	1.6	7/3.15	1.6	7	6.0	1.4	35.65
3 X 70	1 X 54.6	2 X 25	19	10.0	1.8	7/3.15	1.6	7	6.0	1.4	39.85
3 X 95	1 X 54.6	2 X 25	19	11.6	1.8	7/3.15	1.6	7	6.0	1.4	43.05
3 X 120	1 X 54.6	2 X 25	19	13.0	1.8	7/3.15	1.6	7	6.0	1.4	45.85
3 X 150	1 X 54.6	2 X 25	19	14.6	1.8	7/3.15	1.6	7	6.0	1.4	49.05
3 X 16	1 X 70	1 X 25	7	4.8	1.2	7/3.15	1.6	7	6	1.4	28.1
3 X 25	1 X 70	1 X 25	7	6.0	1.4	7/3.15	1.6	7	6	1.4	31.3
3 X 35	1 X 70	1 X 25	7	7.0	1.6	7/3.15	1.6	7	6	1.4	34.1
3 X 50	1 X 70	1 X 25	7	8.3	1.6	7/3.15	1.6	7	6	1.4	36.7
3 X 70	1 X 70	1 X 25	19	10.0	1.8	7/3.15	1.6	7	6	1.4	40.9
3 X 95	1 X 70	1 X 25	19	11.6	1.8	7/3.15	1.6	7	6	1.4	44.1
3 X 120	1 X 70	1 X 25	19	13.0	1.8	7/3.15	1.6	7	6	1.4	46.9
3 X 150	1 X 70	1 X 25	19	14.6	1.8	7/3.15	1.6	7	6	1.4	50.1
3 X 16	1 X 70	2 X 25	7	4.8	1.2	7/3.15	1.6	7	6	1.4	28.1
3 X 25	1 X 70	2 X 25	7	6.0	1.4	7/3.15	1.6	7	6	1.4	31.3
3 X 35	1 X 70	2 X 25	7	7.0	1.6	7/3.15	1.6	7	6	1.4	34.1
3 X 50	1 X 70	2 X 25	7	8.3	1.6	7/3.15	1.6	7	6	1.4	36.7
3 X 70	1 X 70	2 X 25	19	10.0	1.8	7/3.15	1.6	7	6	1.4	40.9
3 X 95	1 X 70	2 X 25	19	11.6	1.8	7/3.15	1.6	7	6	1.4	44.1
3 X 120	1 X 70	2 X 25	19	13.0	1.8	7/3.15	1.6	7	6	1.4	46.9
3 X 150	1 X 70	2 X 25	19	14.6	1.8	7/3.15	1.6	7	6	1.4	50.1
3 X 16	1 X 54.6	1 X 16	7	4.8	1.2	7/3.15	1.6	7	4.8	1.2	27.05
3 X 25	1 X 54.6	1 X 16	7	6.0	1.4	7/3.15	1.6	7	4.8	1.2	30.25
3 X 35	1 X 54.6	1 X 16	7	7.0	1.6	7/3.15	1.6	7	4.8	1.2	33.05
3 X 50	1 X 54.6	1 X 16	7	8.3	1.6	7/3.15	1.6	7	4.8	1.2	35.65
3 X 70	1 X 54.6	1 X 16	19	10.0	1.8	7/3.15	1.6	7	4.8	1.2	39.85
3 X95	1 X 54.6	1 X 16	19	11.6	1.8	7/3.15	1.6	7	4.8	1.2	43.05
3 X 120	1 X 54.6	1 X 16	19	13.0	1.8	7/3.15	1.6	7	4.8	1.2	45.85
3 X 150	1 X 54.6	1 X 16	19	14.6	1.8	7/3.15	1.6	7	4.8	1.2	49.05
3 X 16	1 X 54.6	2 X 16	7	4.8	1.2	7/3.15	1.6	7	4.8	1.2	27.05
3 X 25	1 X 54.6	2 X 16	7	6.0	1.4	7/3.15	1.6	7	4.8	1.2	30.25
3 X 35	1 X 54.6	2 X 16	7	7.0	1.6	7/3.15	1.6	7	4.8	1.2	33.05
3 X 50	1 X 54.6	2 X 16	7	8.3	1.6	7/3.15	1.6	7	4.8	1.2	35.65
3 X 70	1 X 54.6	2 X 16	19	10.0	1.8	7/3.15	1.6	7	4.8	1.2	39.85
3 X 95	1 X 54.6	2 X 16	19	11.6	1.8	7/3.15	1.6	7	4.8	1.2	43.05
3 X 120	1 X 54.6	2 X 16	19	13.0	1.8	7/3.15	1.6	7	4.8	1.2	45.85
3 X 150	1 X 54.6	2 X 16	19	14.6	1.8	7/3.15	1.6	7	4.8	1.2	49.05
3 X 16	1 X 54.6	1 X 16	7	4.8	1.2	7/3.15	1.5	7	4.8	1.2	27.9
3 X 25	1 X 70	1 X 16	7	6.0	1.4	7/3.15	1.5	7	4.8	1.2	31.1
3 X 35	1 X 70	1 X 16	7	7.0	1.6	7/3.15	1.5	7	4.8	1.2	33.9
3 X 50	1 X 70	1 X 16	7	8.3	1.6	7/3.15	1.5	7	4.8	1.2	36.5
3 X 70	1 X 70	1 X 16	19	10.0	1.8	7/3.15	1.5	7	4.8	1.2	40.7
3 X 95	1 X 70	1 X 16	19	11.6	1.8	7/3.15	1.5	7	4.8	1.2	43.9
3 X 120	1 X 70	1 X 16	19	13.0	1.8	7/3.15	1.5	7	4.8	1.2	46.7
3 X 150	1 X 70	1 X 16	19	14.6	1.8	7/3.15	1.5	7	4.8	1.2	49.9
3 X 16	1 X 70	2 X 16	7	4.8	1.2	7/3.15	1.5	7	4.8	1.2	27.9
3 X 25	1 X 70	2 X 16	7	6.0	1.4	7/3.15	1.5	7	4.8	1.2	31.1
3 X 35	1 X 70	2 X 16	7	7.0	1.6	7/3.15	1.5	7	4.8	1.2	33.9
3 X 50	1 X 70	2 X 16	7	8.3	1.6	7/3.15	1.5	7	4.8	1.2	36.5
3 X 70	1 X 70	2 X 16	19	10.0	1.8	7/3.15	1.5	7	4.8	1.2	40.7
3 X 95	1 X 70	2 X 16	19	11.6	1.8	7/3.15	1.5	7	4.8	1.2	43.9
3 X 120	1 X 70	2 X 16	19	13.0	1.8	7/3.15	1.5	7	4.8	1.2	46.7
3 X 150	1 X 70	2 X 16	19	14.6	1.8	7/3.15	1.5	7	4.8	1.2	49.9

ABC Cable NFC 33-209 Standard

Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2x10 RM	12.8	93	3.08	1.5	38
4x10 RM	15.4	183	3.08	1.5	38
2x16 RM	14.8	129	1.91	2.3	72
2x16 RN + 2x1.5 RE	14.8	176	1.910 / 12.100	2.3	72
4x16 RM	17.8	257	1.91	2.3	72
4x16 RN + 2x1.5 RE	17.8	304	1.910 / 12.100	2.3	72
2x25 RM	18	202	1.2	3.8	107
2x25 RM + 2x1.5 RE	18	249	1.200 / 12.100	3.8	107
4x25 RM	21.7	404	1.2	3.8	107
4x25 RM + 2x1.5 RE	21.7	451	1.200 / 12.100	3.8	107
2x35 RM	20.8	269	0.868	5.2	132
2x35 RM + 2x1.5 RE	20.8	316	0.868 / 12.100	5.2	132
4x35 RM	25.1	539	0.868	5.2	132
4x35 RM + 2x1.5 RE	25.1	586	0.868 / 12.100	5.2	132
2x50 RM	23.4	352	0.641	7.6	165
2x50 RM + 2x1.5 RE	23.4	399	0.641 / 12.100	7.6	165
1x54.6 RM + 3x25 RM	21.7	507	0.630 / 1.200	3.8	107
1x54.6 RM + 3x25 RM + 1x16 RM	24.3	573	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 2x16 RM	29.7	639	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 3x16 RM	31.1	705	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1x54.6 RM + 3x35 RM	25.1	615	0.630 / 0.868	5.2	132
1x54.6 RM + 3x35 RM + 1x16 RM	28.1	680	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 2x16 RM	34.3	748	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 3x16 RM	35.9	814	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 1x25 RM	28.1	714	0.630 / 0.868 / 1.200	5.2/3.8	132/107
1x54.6 RM + 3x50 RM	28.2	741	0.630 / 0.641	7.6	165
1x54.6 RM + 3x50 RM + 1x16 RM	31.6	806	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 2x16 RM	38.6	875	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 3x16 RM	40.4	940	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 1x25 RM	31.6	841	0.630 / 0.641 / 1.200	7.6/3.8	165/107
1x54.6 RM + 3x70 RM	33	950	0.630 / 0.443	10.2	205
1x54.6 RM + 3x70 RM + 1x16 RM	37	1014	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 2x16 RM	45.2	1083	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 3x16 RM	47.3	1148	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 1x25 RM	37	1048	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 2x25 RM	45.2	1150	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 3x25 RM	47.3	1250	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1x54.6 RM + 3x95 RM	37.4	1176	0.630 / 0.320	13.5	240
1x54.6 RM + 3x95 RM + 1x16 RM	41.9	1243	0.630 / 0.320 / 1.910	13.5/2.3	240/72

ABC(Aerial Bundle) Cable IEC 60502

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
IEC 60502 & TNB (AL/PE)
1x16+1x 25 RM	6.4	61	15.3	160
3x16+1x 25 RM	6.4	61	19	290
3x25+1x 25 RM	6.4	84	23.2	400
3x35+1x 25 RM	6.4	104	25.6	500
3x50+1x 35 RM	8.9	129	30	680
3x70+1x 50 RM	12.1	167	34.9	920
3x95+1x 70 RM	18	209	40.6	1270
3x120+1x 70 RM	18	246	44.1	1510
3x150+1x 95 RM	24.2	283	49.2	1870
3x185+1x120 RM	30.8	332	54.9	2340
3x25+1x25+1x16 RM	6.4	84	23.2	470
3x35+1x25+1x16 RM	6.4	104	25.6	560
3x50+1x35+1x16 RM	8.9	129	30	740
3x70+1x50+1x16 RM	12.1	167	34.9	980
3x95+1x70+1x16 RM	18	209	40.6	1330
3x120+1x70+1x16 RM	18	246	44.1	1580
3x150+1x95+1x16 RM	24.2	283	49.2	1940
3x185+1x120+1x16 RM	30.8	332	54.9	2410
ABC Cable - DES/LVC IEC 60502 (AL/XLPE)
4x25 RM	3.5	84	21.5	420
4x35 RM	4.9	104	23.9	550
4x120+1x25 RM	16.8	246	43.8	1800
4x185+1x25 RM	25.9	332	50.7	2700

ABC Cable -BS 7870-5 Standard

number of cores x nominal cross section	max. conductor- resistance	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	Ohm/km	kN	A	mm	kg/km
1x 16 RM	1,910	2,5	72	80	74
1x 25 RM	1,200	4,0	107	90	106
1x 35 RM	0,868	5,5	132	105	138
1x 50 RM	0,641	8,0	165	118	182
1x 70 RM	0,443	10,7	205	130	252
1x 95 RM	0,320	13,7	240	154	333
1x 120 RM	0,253	18,6	290	170	408
1x 150 RM	0,206	23,2	334	190	502
1x 185 RM	0,164	28,7	389	210	611
1x 240 RM	0,125	37,2	467	240	801
2x 16 RM	1,910	2,5	72	156	147
2x 25 RM	1,200	4,0	107	180	208
2x 35 RM	0,868	5,5	132	200	277
2x 50 RM	0,641	8,0	165	235	361
2x 70 RM	0,443	10,7	205	254	505
2x 95 RM	0,320	13,7	240	303	666
2x 150 RM	0,206	23,2	334	380	1004
4x 16 RM	1,910	2,5	72	188	286
4x 25 RM	1,200	4,0	107	212	430
4x 35 RM	0,868	5,5	132	241	553
4x 50 RM	0,641	8,0	165	278	746
4x 70 RM	0,443	10,7	205	318	1009
4x 95 RM	0,320	13,7	240	378	1332
4x 120 RM	0,253	18,6	290	544	1632
4x 50 + 1x 25 RM	0,641 / 1,200	8,0 / 4,0	165 / 107	319	814
4x 50 + 1x 35 RM	0,641 / 0,868	8,5 / 5,5	165 /132	319	845
4x 70 + 1x 25 RM	0,443 / 1,200	10,7 / 4,0	205 / 107	360	1105
4x 70 + 2x 25 RM	0,443 / 1,200	10,7 / 4,0	205 / 107	400	1217
4x 95 + 1x 25 RM	0,320 / 1,200	13,7 / 4,0	240 / 107	418	1438
4x 95 + 2x 25 RM	0,320 / 1,200	13,7 / 4,0	240 / 107	420	1544
4x120 + 1x 25 RM	0,253 / 1,200	18,6 / 4,0	290 / 107	590	2050

MV ABC Cable IEC 60502

NUMBER OF CORES X NOMINAL CROSS SECTION	PHASE CONDUCTOR			MESSENGER SUSPENSION UNIT			CONTINUOUS CURRENT RATING AT 300C AMBIENT TEMP
NUMBER OF CORES X NOMINAL CROSS SECTION	STRANDING	NOMINAL SECTIONAL AREA	MAXIMUM CONDUCTOR RESISTANCE	STRANDING	NOMINAL SECTIONAL AREA	BREAKING LOAD	CONTINUOUS CURRENT RATING AT 300C AMBIENT TEMP
NO.×MM²	NO.×MM	MM²	Ω/KM	NO.×MM	MM²	KN	A
6.35/11KV
3X50 + 1X25	19/1.78	50	0.641	7/3.0	50	60	116
3X70 + 1X50	19/.14	70	0.443	7/3.15	50	62	210
3X95+ 1X50	19/2.52	95	0.32	7/3.0	50	60	173
3X185+1X120	37/2.52	185	0.164	7/4.67	120	150	259
3X150 +1X50	37/2.25	150	0.206	7/3.15	50	62	365
3X240 +1X50	61/2.25	240	0.125	7/3.15	50	62	500
19/33KV ABC cable
3X50 + 1X50	19/1.78	50	0.641	7/3.0	50	60	165
3X150+ 1X50	37/2.25	150	0.206	7/3.0	50	60	315
3X185+1X70	37/2.52	185	0.164	7/3.57	70	91	355
3X70 +1X50	19/2.14	7	0.443	7/3.15	50	62	250

Matching Products

*Describe Your Buying Requirements in Detail
