Aluminum Clad Steel-ACS

Guy Alumoweld

Acs Wire

Overhead Ground Wire

AS wire/ACS Wire

Coated Steel Wire

Send E-mail Get Price Now

Application

Aluminum-clad steel wire, commonly abbreviated as AW or AS or AC.

AW : Aluminum-clad steel wire as per ASTM B 502 Standard.

AS : Aluminum-clad steel wire as per IEC 61232 Standard.

AC : Aluminum-clad steel wire as per AS 3607 Standard.

The covered aluminum steel wire for compression, internationally known as Alumoweld or ACS, is a wire of high resistance whose cover is carried through an extrusion process, that adheres the aluminum by pressure and heat.

Manufacture of bare overhead conductor, OPGW, ground wire,Overhead ground wire, messenger wire, guy wire, formed wire for protecting, terminating and splicing transmission and distribution lines,shield wire protecting transmission lines against lightning damage fence, barber wire and hardware.

Alumo-clad steel wire and strand is used by power utilities as well as formed wire and optical ground wire manufacturers.

ACSR/AW Core Wire and Strand

Its high strength, excellent conductivity, impressive corrosion resistance and compatibility with solid aluminum wire make aluminum clad steel products highly desirable as a reinforcing material for ACSR conductors (ACSR/AW).

Formed Wire

Aluminum coated products are made with a special, malleable steel core in its formed wire solution. When used with other connectors and anchors, you guarantee a metallurgical compatibility that eliminates conflicts between dissimilar metals and matches the life expectancy of the conductor or guy wire.

Guy Wire

Aluminum guy wire is non-rusting, high-strength for electrical distribution and transmission lines, communications and signal lines, antenna towers, masts, stacks and other structures. The high tensile strength of this lightweight strand is permanently protected against corrosion by a thick cladding of aluminum.

Messenger Wire

Communications cables require the same superior grade of messenger strand as power cables. Messenger wire ensures a long life, will not rust and maintains its original strength.

Overhead Ground Wire

Aluminum clad steel overhead ground wires offer protection against lightning for transmission lines carrying large blocks of power while providing a combination of conductivity, corrosion resistance and high strength.

Specification

based upon international standard IEC6 1232, EN 61.232 and ASTM B-415 ASTM B502

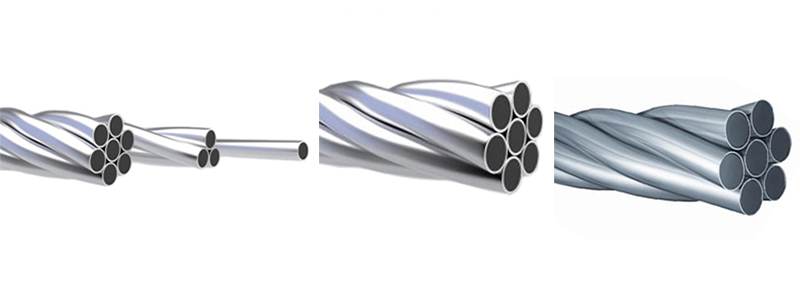

ACS WIRE.jpg

Features

Aluminum clad steel product features include:

Corrosion resistant in industrial, semi-industrial and marine environments

Superior to aluminized steel

Lightweight

Same tensile strength as extra high strength steel but weighs 15 percent less

Excellent conductivity–much more conductive than galvanized steel and aluminum

ASTM B416

Code Number	Area	No. of wires	Diameters		Weight	Rated Strength	DC Resistance
Code Number	mm2	No. of wires	wire	conductor	kg/km	kN	ohm/km
3 No 5 Awg.	50,32	3	4,62	9,96	334,1	54,42	1.699
3 No 6 Awg.	39 ,00	3	4,11	8,87	265,0	45,74	2.142
3 No 7 Awg.	31,65	3	3,67	7,90	210,1	38,36	2.701
3 No 8 Awg.	25,10	3	3,26	7,03	166,7	32,06	3.406
3 No 9 Awg.	19,90	3	2,91	6,26	132,2	25,43	4.294
3 No 10 Awg.	15,78	3	2,59	5,58	104,8	20,16	5.415
7 No 5 Awg.	117,40	7	4,62	13,90	781,1	120,27	0,7426
7 No 6 Awg.	93,10	7	4,11	12,40	619,5	101,14	0,9198
7 No 7 Awg.	73,87	7	3,67	11,00	491,1	84,81	1.16
7 No 8 Awg.	58,56	7	3,26	9,78	389,6	70,88	1.463
7 No 9 Awg.	46,44	7	2,91	8,71	308,9	56,20	1.844
7 No 10 Awg.	36,83	7	2,59	7,76	245,1	44,58	2.325
7 No 11 Awg.	29,21	7	2,30	6,91	194,4	35,35	2.932
7 No 12 Awg.	23,16	7	2,05	6,16	154,2	28,03	3.697
19 No 5 Awg.	318,70	19	4,62	23,10	2129,0	326,39	0,2698
19 No 6 Awg.	252,70	19	4,11	20,60	1688,0	274,55	0,3402
19 No 7 Awg.	200,40	19	3,67	18,30	1339,0	230,18	0,4290
19 No 8 Awg.	158,90	19	3,26	16,30	1062,0	192,41	0,5409
19 No 9 Awg.	126,10	19	2,91	14,50	842,0	152,58	0,6821
19 No 10 Awg.	99,96	19	2,59	12,90	667,7	121,00	0,8601
37 No 5 Awg.	620,60	37	4,62	32,30	4170,0	635,43	0,1394
37 No 6 Awg.	492,20	37	4,11	28,80	3307,0	534,85	0,1757
37 No 7 Awg.	390,30	37	3,67	25,70	2623,0	448,09	0,2216
37 No 8 Awg.	309,50	37	3,26	22,90	2080,0	374,67	0,2794
37 No 9 Awg.	245,50	37	2,91	20,30	1649,0	279,11	0,3523
37 No 10 Awg.	194,70	37	2,59	17,90	1308,0	235,61	0,4443

DIN 48201

Code Number	Area	No. of wires	Diameters(mm)		Weight	Rated Strength	DC Resistance
mm2	mm2	No. of wires	wire	conductor	kg/km	kN	ohm/km
25	24.25	7	2.1	6.3	162	31.56	3.546
35	34.36	7	2.5	7.5	229	44.72	2.499
50	49.48	7	3	9	330	64.4	1.736
70	65.81	19	2.1	10.5	441	85.65	1.313
95	93.27	19	2.5	12.5	626	121.39	0.925
120	116.99	19	2.8	14	785	152.26	0.737
150	147.11	37	2.25	15.7	990	191.46	0.587
185	181.62	37	2.5	17.5	1221	236.38	0.476
240	242.54	61	2.25	20.2	1635	299.05	0.357

IEC 61232

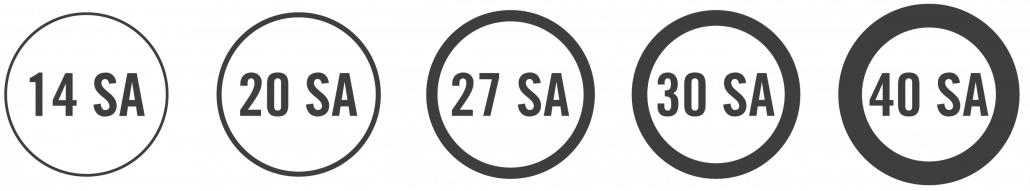

Class					20SA			27SA	30SA		40SA
Type					A		B	-	-		-
Tolerance on diameter		Ø ≥ 2,67 mm			± 1,5%		± 1,5%	± 1,5%	± 1,5%		± 1,5%
		Ø < 2,67 mm			± 0,04 mm		± 0,04 mm	± 0,04 mm	± 0,04 mm		± 0,04 mm
Minimum thickness of aluminium clad (% of radius)					8% if Ø < 1,80 mm			14%	15%		25%
					10% if Ø ≥ 1,80 mm
Nominal density at 20°C (g/cm³)					6,59		6,53	5,91	5,61		4,64
Resistivity at 20°C max. (nΩ x m)					84,80		84,80	63,86	57,47		43,10
Conductivity (IACS)					20,3%		20,3%	27%	30%		40%
Final modulus of elasticity (GPa)					162		155	140	132		109
Coefficient of linear expansion (K-1)					13,0 x 10-6		12,6 x 10-6	13,4 x 10-6	13,8 x 10-6		15,5 x 10-6
Constant-mass temperature coefficient of resistance (K-1)					0,0036		0,0036	0,0036	0,0038		0,0040
MECHANICAL PROPERTIES
class	type		nominal diameter (mm)			min. tensile strength (N/mm²)		min. stress at 1% extension		elongation		torsion test (min. twists)
20SA	A		1,24	3,25		1340		1200		1,5%		20
			3,26	3,45		1310		1180
			3,46	3,65		1270		1140
			3,66	3,95		1250		1100
			3,96	4,10		1210		1100
			4,11	4,40		1180		1070
			4,41	4,60		1140		1030
			4,61	4,75		1100		1000
			4,76	5,50		1070		1000
	B		1,24	5,50		1320		1100
27SA	-		2,50	5,00		1080		800
30SA	-		2,50	5,00		880		650
40SA	-		2,50	5,00		680		500

ASTM B 415-02

1, Tensile Requirement

Nominal Diameter, in./mm		Size, AWG	20.3%		27%		30%		40%
Nominal Diameter, in./mm		Size, AWG	psi	MPa	psi	MPa	psi	MPa	psi	MPa
0.2043	5.19	4	155 000	1070	125 000	862	102 000	703	80 000	552
0.1880	4.78		160 000	1100	129 000	889	106 000	731	84 000	579
0.1819	4.62	5	165 000	1140	133 000	917	110 000	758	88 000	607
0.1729	4.39		170 000	1170	137 000	945	114 000	786	92 000	634
0.1620	4.11	6	175 000	1210	141 000	972	114 000	786	96 000	662
0.1549	3.93		180 000	1240	145 000	1000	118 000	814	96 000	662
0.1443	3.67	7	185 000	1280	150 000	1034	122 000	841	98 000	676
0.1369	3.48		190 000	1310	154 000	1062	126 000	869	98 000	676
0.1285	3.26	8	195 000	1340	156 000	1076	128 000	883	99 500	686
0.1144	3.91	9	195 000	1340	156 000	1076	128 000	883	99 500	686
0.1019	2.59	10	195 000	1340	156 000	1076	128 000	883	99 500	686
0.0907	2.30	11	195 000	1340	156 000	1076	128 000	883	99 500	686
0.0808	2.05	12	195 000	1340	156 000	1076	128 000	883	99 500	686

2, Physical Constants

% Conductivity	Density at 20°C	Modulus of Elasticity psi	Coef. of Linear Exp.	Temperature Coef. of Resistance
20.3	0.2381 lb/in3 (6.59 g/cm3)	23.5×106 (162 GPa)	0.0000072/°F (0.0000126/℃)	0.0020/°F (0.0036/℃)
27	0.2135 lb/in3 (5.91 g/cm3)	20.3×106 (140 GPa)	0.0000077/°F (0.0000134/℃)	0.0020/°F (0.0036/℃)
30	0.2027 lb/in3 (5.61 g/cm3)	19.1×106 (132 GPa)	0.0000079/°F (0.0000138/℃)	0.0021/°F (0.0038/℃)
40	0.1676 lb/in3 (4.64 g/cm3 )	15.8×106 (109 GPa)	0.0000089/°F (0.0000155/℃)	0.0022/°F (0.0040/℃)

3, Wire Diameter Variations

Specified Diameter, in.

Permissible Variations in Specified Diameter, plus and minus

0.2043 to 0.1000,incl

0.1000 to 0.0800,incl

1.5%

0.0015 in. (0.038mm)

4, Aluminum Thickness and Resistance

% Conductivity

% of Nominal Wire Radius

D.C. Resistance at 20℃

20.3

10%

14%

15%

25%

51.01 Ω·cmil/ft

38.41 Ω·cmil/ft

34.57 Ω·cmil/ft

25.93 Ω·cmil/ft

ASTM B 502-02

Aluminum-Clad Steel Core Wire for Aluminum Conductors, Aluminum-Clad Steel Reinforced

1. Tensile Requirements

Nominal Diameter

in.(mm)

Stress at 1% Extension min. psi(MPa)

Ultimate Tensile Strength min. psi(MPa)

Elongation min

%,10in. (250mm)

0.0770 to 0.1289

(1.956 to 3.274).,incl

0.1290 to 0.1396

(3.275 to 3.477).,incl

0.1370 to 0.1443

(3.478 to 3.665).,incl

0.1444 to 0.1549

(3.666 to 3.934).,incl

0.1550 to 0.1620

(3.935 to 4.115).,incl

0.1621 to 0.1729

(4.116 to 4.392).,incl

0.1730 to 0.1819

(4.393 to 4.620).,incl

0.1820 to 0.1880

(4.621 to 4.775).,incl

175 000(1206)

170 000(1172)

165 000(1137)

160 000(1103)

155 000(1068)

150 000(1034)

145 000(1100)

195 000(1344)

190 000(1310)

185 000(1275)

180 000(1241)

175 000(1206)

170 000(1172)

165 000(1137)

160 000(1103)

1.5

2. Wire Diameter Variations

Nominal Diameter in.(mm)

Permissible Variations in Nominal Diameter

0.0770 to 0.0999

(1.956 to 2.537),incl

0.1000 to 0.1880

(2.538 to 4.775),incl

0.0015in,(0.038mm)

1.5%

ALUMINUM CLAD STEEL CONDUCTOR (ACS) - EN 50182

Code Name	Sectional Area	Stranding		Overall Diameter of Conductor	Weight	D C Resistance at 20°C	Rated Strength
	Sectional Area	No. of Wires	Individual wire diameter	Overall Diameter of Conductor	Weight	D C Resistance at 20°C	Rated Strength
	mm²	No.	mm	mm	Kg/km	Ω/Km	KN
24-A20SA	24.2	7	2.10	6.30	161.5	3.5364	32.49
34-A20SA	34.4	7	2.50	7.50	229.0	2.4953	46.04
49-A20SA	49.5	7	3.00	9.00	329.7	1.7328	66.30
66-A20SA	65.8	19	2.10	10.50	441.0	1.3102	88.18
93-A20SA	93.3	19	2.50	12.50	624.9	0.9245	124.98
117-A20SA	117.0	19	2.80	14.00	783.9	0.7370	156.77
147-A20SA	147.1	37	2.25	15.80	989.2	0.5881	197.13
182-A20SA	181.6	37	2.50	17.50	1 221.2	0.4764	243.38
243-A20SA	242.5	61	2.25	20.30	1 636.1	0.3579	325.00
299-A20SA	299.4	61	2.50	22.50	2 019.8	0.2899	401.24
