Overhead Covered AAC AAAC ACSR Conductor- Tree Wire Systems

    Overhead Covered Conductor.Covered Line Wire.Aerial MV Cable. Spacer Cable.Tree Wire. One Layer.Two Layer.Three Layer.Multi-Layer.

    If you don´t find a suitable cable, we will design it for you acc. to your individual requests.


Application

Used for primary and secondary overhead distribution where limited space is available or desired  for  rights-of-way.  Installed the same as bare conductors, however, covering is effective in preventing direct shorts and instantaneous flash overs should tree limbs or other objects contact conductors in such close proximity.

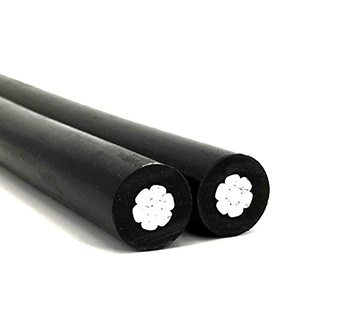

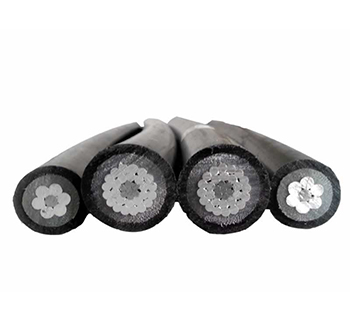

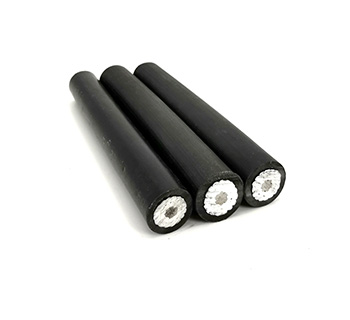

Tree Wire - Used for spans where trees crowd the right-of-way, such as in wooded residential areas, when a minimum of interference with the environment is desired. Covering minimizes power outages due to conductor contact with  tree  limbs, reducing the need for frequent or severe trimming.

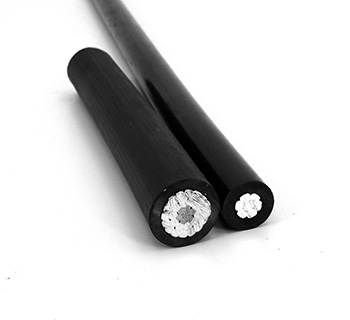

Covered Aerial MV Cable - Installed with other Covered Aerial MV cables and a supporting messenger through a series of space- maintaining devices (spacers). The resulting close-proximity configuration minimizes the amount of space  and  hardware required for line  installation,  particularly  useful  in  congested areas.

Spacer Cable - Installed with other spacer cables and a supporting messenger through a series of space-maintaining devices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas.

Construction

AAC  (1350-H19),  AAAC  or  ACSR  conductors, concentrically stranded. Available with black or gray track-resistant, high-density polyethylene (HD) or black track-resistant crosslinked polyethylene (XLP) covering.

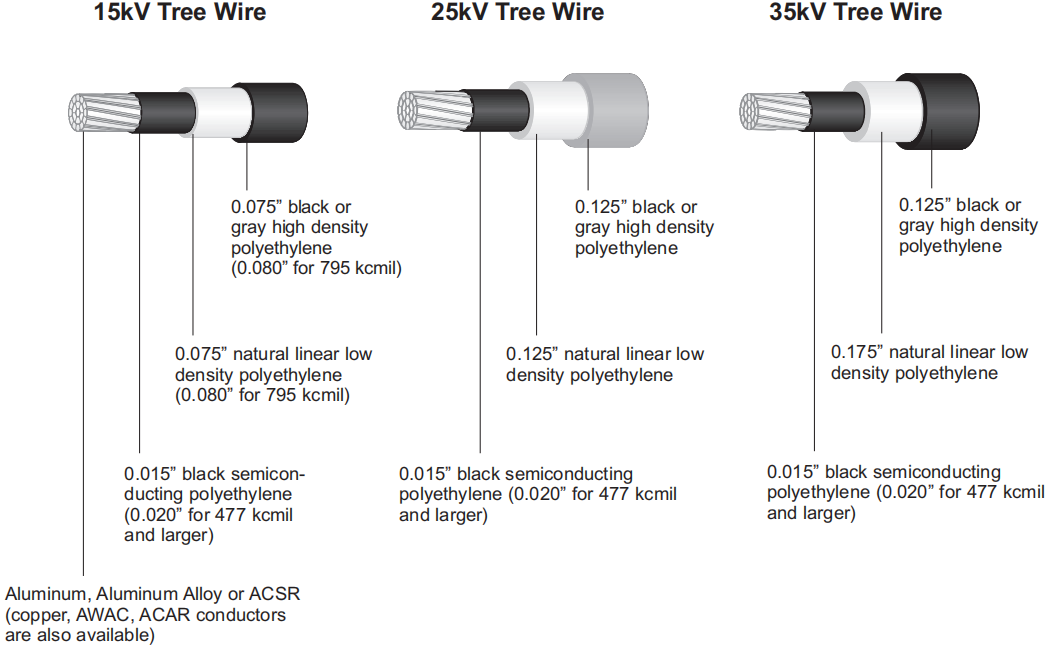

tree wire.png


ACSR Concentric Round Conductors



Size



Strands (Al/Steel)

15kV 2 layer Tree Wire

15kV Tree Wire

25kV Tree Wire

35kV Tree Wire

Cable Diameter (inches)

Cable Weight (lbs/1000 ft)

Cable Diameter (inches)

Cable Weight (lbs/1000 ft)

Cable Diameter (inches)

Cable Weight (lbs/1000 ft)

Cable Diameter (inches)

Cable Weight (lbs/1000 ft)

#2 AWG

6/1

0.616

190

0.646

207

0.846

304

NA

NA

1/0 AWG

6/1

0.698

264

0.728

284

0.928

391

1.028

454

2/0 AWG

6/1

0.747

314

0.777

336

0.977

450

1.077

516

3/0 AWG

6/1

0.802

376

0.832

400

1.032

521

1.132

591

4/0 AWG

6/1

0.863

452

0.893

478

1.093

607

1.193

681

266.8 kcmil

18/1

0.909

454

0.939

480

1.139

615

1.239

691

266.8 kcmil

26/7

0.942

534

0.972

561

1.172

700

1.272

778

336.4 kcmil

18/1

0.984

547

1.014

576

1.214

720

1.314

802

336.4 kcmil

26/7

1.020

648

1.050

677

1.250

826

1.350

910

336.4 kcmil

30/7

1.041

717

1.071

747

1.271

899

1.371

984

397.5 kcmil

18/1

1.043

629

1.073

660

1.273

812

1.373

897

397.5 kcmil

24/7

1.072

710

1.102

740

1.302

896

1.402

983

397.5 kcmil

26/7

1.083

747

1.113

778

1.313

935

1.413

1,023

477.0 kcmil

18/1

1.114

733

1.154

775

1.354

938

1.454

1,028

477.0 kcmil

24/7

1.146

830

1.186

872

1.386

1,039

1.486

1,131

477.0 kcmil

26/7

1.158

875

1.198

918

1.398

1,086

1.498

1,179

477.0 kcmil

30/7

1.183

971

1.223

1,015

1.423

1,186

1.523

1,281

556.5 kcmil

18/1

1.179

835

1.219

881

1.419

1,052

1.519

1,146

556.5 kcmil

24/7

1.214

948

1.254

994

1.454

1,169

1.554

1,265

556.5 kcmil

26/7

1.227

1001

1.267

1,047

1.467

1,223

1.567

1,321

636.0 kcmil

18/1

1.240

937

1.280

986

1.480

1,165

1.580

1,263

636.0 kcmil

24/7

1.277

1066

1.317

1,114

1.517

1,297

1.617

1,398

636.0 kcmil

26/7

1.290

1125

1.330

1,174

1.530

1,359

1.630

1,460

795.0 kcmil

24/7

1.392

1298

1.432

1,352

1.632

1,550

1.732

1,657

795.0 kcmil

26/7

1.408

1373

1.448

1,428

1.648

1,628

1.748

1,736

795.0 kcmil

45/7

1.363

1158

1.403

1,209

1.603

1,403

1.703

1,509


Aluminum Alloy (6201-T81) Concentric Round Conductors



Equivalent Size



Code Word

15kV 2 layer Tree Wire

15kV Tree Wire

25kV Tree Wire

35kV Tree Wire

Cable Diameter (inches)

Cable Weight (lbs/1000 ft)

Cable Diameter (inches)

Cable Weight (lbs/1000 ft)

Cable Diameter (inches)

Cable Weight (lbs/1000 ft)

Cable Diameter (inches)

Cable Weight (lbs/1000 ft)

#2 AWG

Ames

0.616

171

0.646

189

0.846

286

NA

NA

1/0 AWG

Azusa

0.698

234

0.728

255

0.928

362

1.028

424

2/0 AWG

Anaheim

0.747

276

0.777

299

0.977

413

1.077

478

3/0 AWG

Amherst

0.802

328

0.832

353

1.032

474

1.132

543

4/0 AWG

Alliance

0.863

392

0.893

419

1.093

548

1.193

621

266.8 kcmil

Butte

0.942

464

0.972

493

1.172

632

1.272

709

336.4 kcmil

Canton

1.021

559

1.051

592

1.251

741

1.351

822

397.5 kcmil

Cairo

1.083

641

1.113

677

1.313

834

1.413

918

477.0 kcmil

Darien

1.158

748

1.198

796

1.398

964

1.498

1,053

556.5 kcmil

Elgin

1.227

853

1.267

904

1.467

1,081

1.567

1,175

636.0 kcmil

Flint

1.291

941

1.331

994

1.531

1,179

1.631

1,276

795.0 kcmil

Greeley

1.408

1144

1.448

1,204

1.648

1,404

1.748

1,507


ALLALUMINIUM CONDUCTORS (AAC) TYPE 8 PVC INSULATION (AAC/PVC) BS215.1- BS6485

Code Name

Nominal

Calculatec

Wires

Approx. Overall Dia.

Nominal

Max.D.C. Resistance at20P

Alum. Weight

PVC Insulated Overall Diameter

PVC Insulated

Total Weight

Packing Length

Area

Area

No.

Dia.

Load


mm'

mm2


mm

mm

kN

Q/km

kg/km

mm

kg/km

m±5%

Midge

22

23.33

7

2.06

6.2

3.99

1.227

64

8.4

106

3000

Aphis

25

26.44

3

3.35

7.2

4.11

1.081

73

9.2

133

3000

Gnat

25

26.8

7

2.21

6.6

4.59

1.066

73

8.8

116

3000

Weevil

30

31.6

3

3.66

7.9

4.86

0.9082

86

10.1

158

3000

Mosouito

35

37

7

2.59

7.8

6.03

0.7762

101

10.0

158

3000

Ladybird

40

42.8

7

2.79

8.4

6.87

0.6689

117

10.6

177

3000

Ant

50

52.83

7

3.1

9.3

8.28

0.5419

145

11.5

212

3000

Fly

60

63.55

7

3.4

10.2

9.9

0.4505

174

12.4

249

2500

Blueeottle

70

73.55

7

3.66

11.0

11.34

0.3881

202

13.2

285

2500

Earwing

75

78.5

7

3.78

11.4

11.94

0.3644

215

13.6

302

2000

Grasshopper

80

84.1

7

3.91

11.7

12.78

0.3406

230

13.9

319

2000

Clegg

90

95.6

7

4.17

12.5

14.53

0.2994

262

14.7

359

2000

Wasp

100

108

7

4.39

13.21

16.0

0.2702

290

15.4

393

3000

Beetle

100

106.6

19

2.67

13.4

17.42

0.2704

293

15.6

387

3000

Bee

125

132

7

4.9

14.7

19.94

0.2169

361

16.5

482

2500

Cricket

150

157.9

7

5.36

16.1

23.85

0.1813

432

18.3

587

2000

Hornet

150

157.6

19

3.25

16.3

27.7

0.1825

434

18.5

638

3000

Caterpillar

175

186

19

3.53

17.7

28.63

0.1547

512

19.9

646

2500

Chafer

200

213.2

19

3.78

18.9

32.4

0.1349

587

21.1

733

2000

Spider

225

236.9

19

3.99

20.0

36.01

0.1211

652

22.2

809

2000

Cockroach

250

265.7

19

4.22

21.1

40.4

0.1083

731

23.3

900

3000

Butterfly

300

322.7

19

4.65

23.3

48.7

0.08916

888

25.5

1082

3000

Moth

350

373.2

19

5.0

25.0

56.37

0.07711

1027

27.2

1241

2500

Drone

350

373.3

37

3.58

25.1

57.45

0.07741

1029

27.3

1222

2500

Locust

400

428.5

19

5.36

26.8

64.73

0.0671

1179

29

1416

2000

Centipede

400

415.2

37

3.78

26.5

63.1

0.06944

1145

28.7

1363

2000

Maybug

450

486.9

37

4.09

28.6

74.01

0.05931

1342

30.8

1573

2000

Scorpion

500

529.5

37

4.27

29.9

79.98

0.05441

1460

32.1

1706

1500

Cicada

600

628.6

37

4.65

32.6

94.95

0.04586

1733

34.5

2010

1500

Tarantula

750

794.8

37

5.23

36.6

120.1

0.03627

2191

38.5

2519

1000
