CÂBLES TORSADES DE DISTRIBUTION AÉRIENNE CÂBLES ALUMINIUM

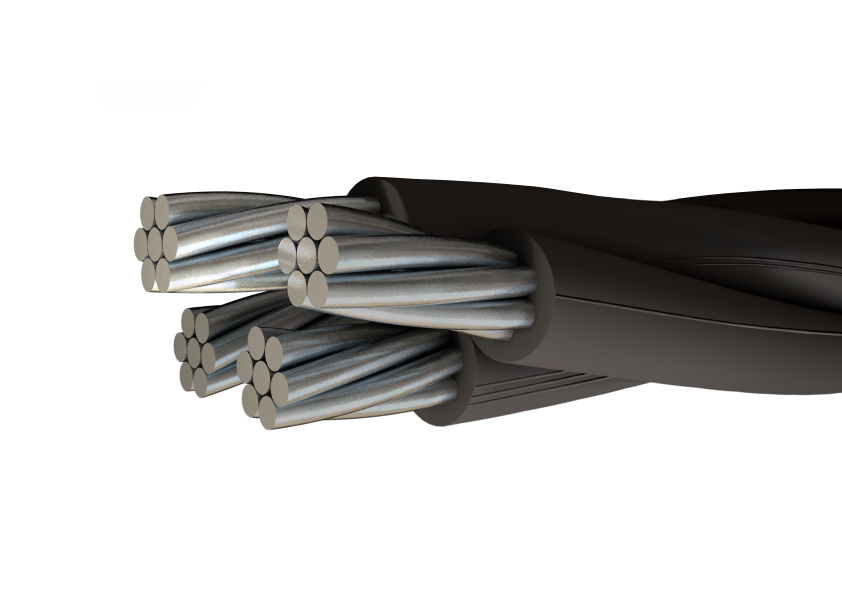

    Aerial Bundled Cables to NFC 33-209 (AL/XLPE)

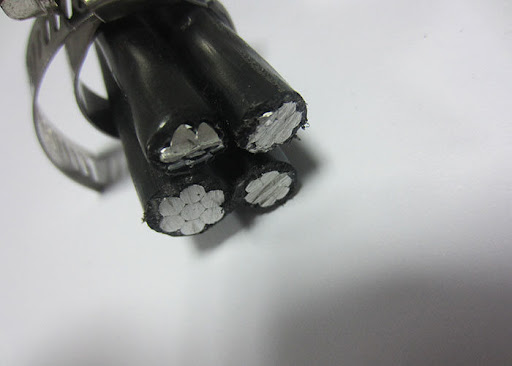

    Torsade Aluminum 4x16MM2

    Torsade Aluminum 4x25 MM2 ABC cables

CÂBLES TORSADES DE DISTRIBUTION AÉRIENNE CÂBLES ALUMINIUM

APPLICATIONS

Used for overhead distribution. Cables with neutral messenger are designed for rural and urban areas.

These cables are not suitable for underground installation


CONDUCTOR CONSTRUCTION

For the messenger: AGS aluminiun alloy.

Aluminium for phases.

AGS aluminium Alloy for the neutral


INSULATION

Black XLPE


TECHNICAL DATA

Nominal Voltage: 0,6/1 KV

Test voltage: 4KV.

Maximum conductor temperature in service: +90°C

Maximum short circuit temperature: +250°C

Neutral breaking load min.: 1660 daN


No. of Conductor
and Cross Section Area

Phase Core

Neutral Core

Street Lighting

Core

Complete Cable

No. and
Section Area

No. of Wire

Dia. of Conductor
(Approx.)

Insulation
Thickness

No. and
Section Area

No. of Wire

Dia. of Conductor
(Approx.)

Insulation
Thickness

No. and
Section area

No. of Wires

Diameter
of
conductor

Insulation
Thickness

Overall Diameter
(Approx.)

Weight
(Approx.)

mm2

mm2

No.

mm

mm

mm2

No.

mm

mm

mm2

No.

mm

mm

mm

kg/km

2x16

2x16

7

4.8

1.2

-

-

-

-

-

-

-

-

14.2

126

2x25

2x25

7

6.0

1.4

-

-

-

-

-

-

-

-

17.6

194

2x35

2x35

7

7.0

1.6

-

-

-

-

-

-

-

-

20.4

266

2x50

2x50

7

8.1

1.6

-

-

-

-

-

-

-

-

22.6

341

4x16

4x16

7

4.8

1.2

-

-

-

-

-

-

-

-

17.2

252

4x25

4x25

7

6.0

1.4

-

-

-

-

-

-

-

-

21.2

388

4x35

4x35

7

7.0

1.6

-

-

-

-

-

-

-

-

24.6

533

3x25+54.6

3x25

7

6.0

1.4

1x54.6

7

9.45

1.6

-

-

-

-

23.6

496

3x25+54.6+1x16

3x25

7

6.0

1.4

1x54.6

7

9.45

1.6

1x16

7

4.8

1.2

24.9

560

3x25+54.6+2x16

3x25

7

6.0

1.4

1x54.6

7

9.45

1.6

2x16

7

4.8

1.2

26.6

624

3x35+54.6

3x35

7

7.0

1.6

1x54.6

7

9.45

1.6

-

-

-

-

26.1

604

3x35+54.6+1x16

3x35

7

7.0

1.6

1x54.6

7

9.45

1.6

1x16

7

4.8

1.2

27.2

668

3x35+54.6+2x16

3x35

7

7.0

1.6

1x54.6

7

9.45

1.6

2x16

7

4.8

1.2

28.7

732

3x50+54.6

3x50

7

8.1

1.6

1x54.6

7

9.45

1.6

-

-

-

-

28.1

716

3x50+54.6+1x16

3x50

7

8.1

1.6

1x54.6

7

9.45

1.6

1x16

7

4.8

1.2

28.9

780

3x50+54.6+2x16

3x50

7

8.1

1.6

1x54.6

7

9.45

1.6

2x16

7

4.8

1.2

30.3

844

3x70+54.6

3x70

12

10.0

1.8

1x54.6

7

9.45

1.6

-

-

-

-

32.2

940

3x70+54.6+1x16

3x70

12

10.0

1.8

1x54.6

7

9.45

1.6

1x16

7

4.8

1.2

32.7

1004

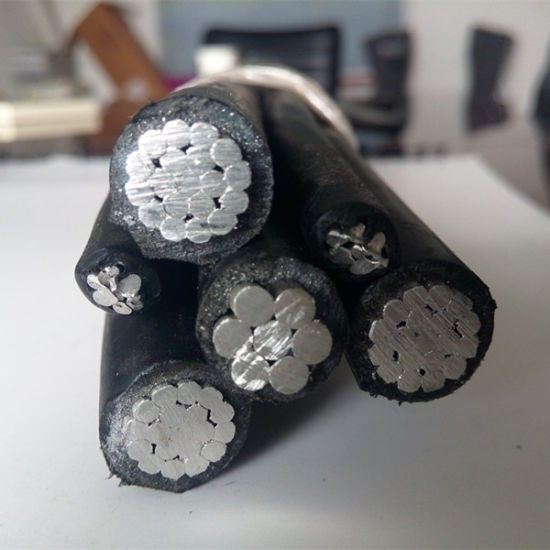

3x70+54.6+2x16

3x70

12

10.0

1.8

1x54.6

7

9.45

1.6

2x16

7

4.8

1.2

33.8

1068

3x70+54.6+1x25

3x70

12

10.0

1.8

1x54.6

7

9.45

1.6

1x25

7

6.0

1.4

33.6

1038

3x70+54.6+2x25

3x70

12

10.0

1.8

1x54.6

7

9.45

1.6

2x25

7

6.0

1.4

35.5

1137

3x70+70

3x70

12

10.0

1.8

1x70

7

10.20

1.5

-

-

-

-

32.1

970

3x70+70+1x16

3x70

12

10.0

1.8

1x70

7

10.20

1.5

1x16

7

4.8

1.2

32.5

1035

3x70+70+2x16

3x70

12

10.0

1.8

1x70

7

10.20

1.5

2x16

7

4.8

1.2

33.6

1099

3x95+70

3x95

19

11.7

1.8

1x70

7

10.20

1.5

-

-

-

-

35.6

1212

3x95+70+1x16

3x95

19

11.7

1.8

1x70

7

10.20

1.5

1x16

7

4.8

1.2

35.7

1276

3x95+70+2x16

3x95

19

11.7

1.8

1x70

7

10.20

1.5

2x16

7

4.8

1.2

36.6

1340

3x120+70

3x120

19

13.0

1.8

1x70

7

10.20

1.5

-

-

-

-

38.0

1439

3x120+70+1x16

3x120

19

13.0

1.8

1x70

7

10.20

1.5

1x16

7

4.8

1.2

37.8

1503

3x120+70+2x16

3x120

19

13.0

1.8

1x70

7

10.20

1.5

2x16

7

4.8

1.2

38.6

1567

3x150+70

3x150

19

14.4

1.7

1x70

7

10.20

1.5

-

-

-

-

40.2

1650

3x150+70+1x16

3x150

19

14.4

1.7

1x70

7

10.20

1.5

1x16

7

4.8

1.2

39.8

1714

3x150+70+2x16

3x150

19

14.4

1.7

1x70

7

10.20

1.5

2x16

7

4.8

1.2

40.4

1778

3x120+95

3x120

19

13.0

1.8

1x95

19

12.50

1.6

-

-

-

-

39.5

1526

3x120+95+1x16

3x120

19

13.0

1.8

1x95

19

12.50

1.6

1x16

7

4.8

1.2

39.5

1590

3x120+95+2x16

3x120

19

13.0

1.8

1x95

19

12.50

1.6

2x16

7

4.8

1.2

39.8

1654

3x150+95

3x150

19

14.4

1.7

1x95

19

12.50

1.6

-

-

-

-

41.7

1736

3x150+95+1x16

3x150

19

14.4

1.7

1x95

19

12.50

1.6

1x16

7

4.8

1.2

41.7

1800

3x150+95+2x16

3x150

19

14.4

1.7

1x95

19

12.50

1.6

2x16

7

4.8

1.2

41.6

1865
