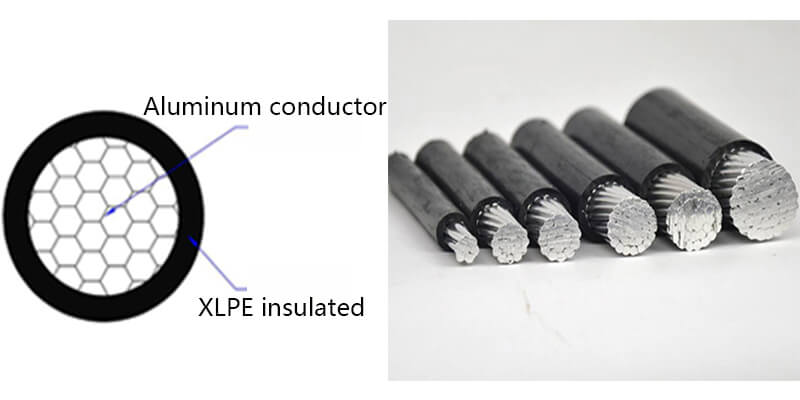

600v 1c 95 mmsq al xlpe insulated abc cable
600v 1c 95 mmsq al xlpe insulated abc cable
Technical Data
• Cable comply with IEC 60502
• Voltage: Uo/U 0.6/1 kV
• Temperature of laying :
• no less than - 10 °C recommended 15 °C
• Minimum Bending Radius
15 x cable 0
• Permitting long -term operating temperature
90 °C
Application
The power cables with cross-1 inked polyethylene (XLPE) insulation for overhead lines are designed for electrical installations with alternating power networks with nominal voltage Uo/U 0.6/1 kV or in direct power networks with maximum voltage according to land 0.9 kV. are used for building networks in city and urban areas and the self-supporting type cables are for building distribution networks in these areas

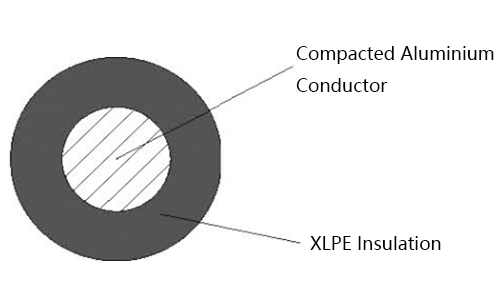

Cable drawing
Cable structure
Size mm2 | Aluminium Conductor single wire nos. | Insulation Thickness mm | Max.DC. Resistance at 20 °C Q/km | Approx. Overall diameter mm | Approx. weight Kg/km |
1x95 | 19 | 1.6 | 0.320 | 14.8 | 318 |
1x120 | 19 | 1.6 | 0.253 | 16.2 | 387 |
MV AERIAL CABLE 6.6/11 KV
Technical Data
• Cable comply with IEC 60502.
• Voltage: Uo/U 8.7/15 kV
• Temperature of laying : no less than - 15 °C recommended 15 °C
• Minimum Bending Radius
15 x cable 0
• Permitting long-term operating
temperature 90 °C
Application
For use on single phase and three phase primary overhead distribution systems operating at 11 kV used for building networks in city and urban areas

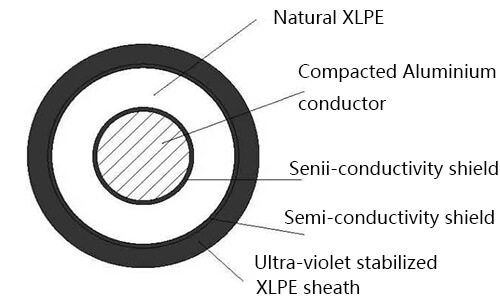

Drawing
Structure
Size mm2 | Conductor single wire | Semi -Conductivity Shield thickness | XLPE Insulation Thickness | Semi -Conductivity shield thickness | XLPE outersheath thickness | Overall diameter | Approx, weight | |
Nos | Dia. mm | mm | mm | mm | mm | mm | Kg/km | |
1x95 | 19 | Compact | 0.6 | 3.4 | 0.7 | 1.8 | 24.8 | 630 |
1x120 | 19 | Compact | 0.6 | 3.4 | 0.7 | 1.8 | 26.2 | 720 |
