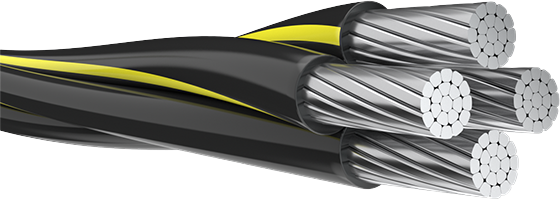

Georgia AER-ABC Self-Supporting Cable

Min. Bending radius 12xD

Max operating temperature PE:70° - XLPE:90°

Max short circuit temperature PE:160° - XLPE:250°

Rated voltage Uo/U 0,6 /1 KV

AC test voltage 3,5 KV

Flame propagation test on single cable EN 60332-1


Bundle assembled cores for overhead systems of rated voltage

Aerial cables used power distribution in populated areas.

Insulation: XLPE Polyethylene

Rated Cross-section	Overall Diameter of Cable	Net Weight (Approx.)	Conductor DC Resistance at 20C	Current Carrying Capacity In Air
mm2	mm	kg	ohm/km	ampere 1
2 Cores
2 x 16	15	142	1,91	100
2 x 25	18	201	1,20	130
2 x 35	20	269	0,868	160
2 x 50	23	365	0,641	195
2 x 70	23	492	0,443	240
2 x 95	27	668	0,320	300
2 x 120	31	822	0,253	340
3 Cores
3 x 16	16	212	1,91	100
3 x 25	19	304	1,20	130
3 x 35	22	404	0,868	160
3 x 50	25	548	0,641	195
3 x 70	29	738	0,443	240
3 x 95	34	1010	0,320	300
3 x 120	36	1232	0,253	340
4 Cores
4 x 16	18	283	1,91	100
4 x 25	23	403	1,20	130
4 x 35	24	540	0,868	160
4 x 50	29	730	0,641	195
4 x 70	32	984	0,443	240
4 x 95	39	1335	0,320	300
4 x 120	41	1643	0,253	340
