Underground Medium Voltage Cable

Date:2025-08-05

Underground Medium Voltage Cable


This Underground power circuits featuring three-phase AC voltage insulated cable with a rated voltage between 6.6kV and 36kV. These lines are mainly used in a distribution network for electrical power, connecting local substations or small generating units such as wind turbines to the main grid supply point, or for connecting plant in industrial processes which require large amounts of power. Medium voltage insulated cables may also be used in conjunction with bare overhead lines in networks.


Our two leading types of medium-voltage cable are XLPE (cross-linked polyethylene) and EPR (Ethylene Propylene Rubber). The former is used worldwide, while the latter is mainly for selected markets.

From a design point of view, medium-voltage cables are of three types:

- single-core cable,

- three single-core cables laid-up,

- three-core cable.

6-36kV Medium Voltage Underground Power Cables XLPE insulated cables Types

3.8/6.6 (7.2) kV Three Core armoured copper conductors
6.35/11 (12) kV Triplex / Single Core unarmoured copper conductors
6.35/11 (12) kV Triplex / Single Core unarmoured aluminium conductors
6.35/11 (12) kV Three Core unarmoured copper conductors
6.35/11 (12) kV Three Core unarmoured aluminium conductors
6.35/11 (12) kV Single Core armoured copper conductors
6.35/11 (12) kV Single Core armoured aluminium conductors
6.35/11 (12) kV Three Core armoured copper conductors
6.35/11 (12) kV Three Core armoured aluminium conductors
8.7/15 (17.5) kV Single Core armoured copper conductors
8.7/15 (17.5) kV Three Core armoured copper conductors
12/20 (22) kV Single Core copper unarmoured conductors
12/20 (22) kV Single Core armoured copper conductors
12/20 (22) kV Three Core armoured copper conductors
19/33 (36) kV Single Core unarmoured copper conductors
19/33 (36) kV Single Core unarmoured aluminium conductors
19/33 (36) kV Single Core armoured copper conductors
19/33 (36) kV Three Core armoured copper conductors

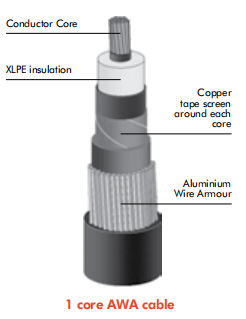

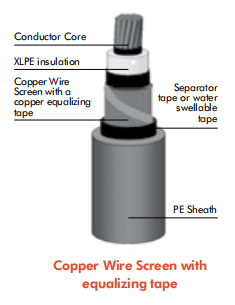

Constructions for Medium Voltage Cable

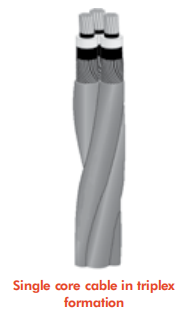

4c8199dba146ae48f364131b7c0f9a70.png176e618f6a67a9df282463bb4dc44c65.pngd684bd00edd87529bea6d6fc03b1c792.png906818f29e8a782407a091db542b0e3c.png70f7adce2d0aae834648dafb0e69df57.png

TYPE OF INSTALLATION

Medium voltage cables can be laid directly in the ground, or pulled into ducts laid in the ground, or run in tunnels or

above ground on cable trays/ladders.

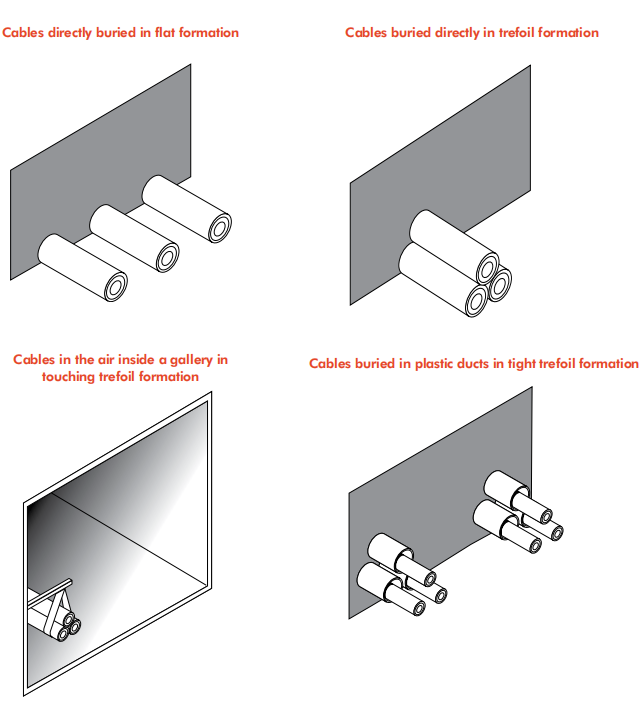

Cables can be laid in trefoil (three cores arranged in a triangular formation), or flat, dependant upon the actual requirements for each arrangement.
