795-26/7 ACSR/GA2 DRAKE

Aluminium Conductor Steel Reinforced - ACSR (KCMIL Series)

CAA 795 KCM 26/7F DRAKE CL A

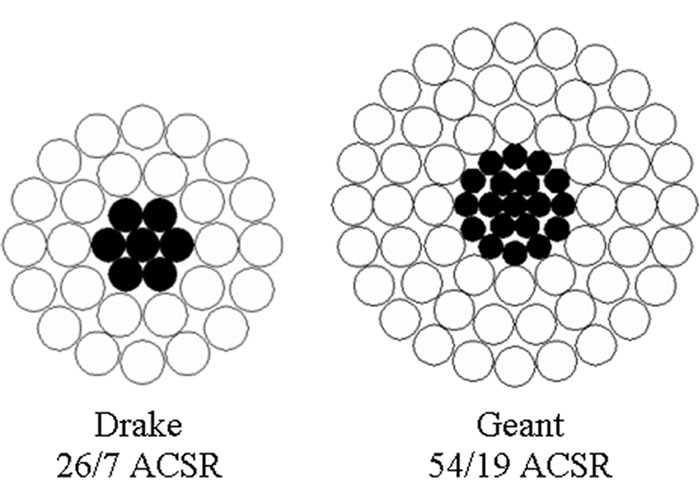

Conductor formed by a steel core and aluminium wires layers.

ACSR Applications

Bare ACSR conductors are intended for use as overhead transmission, primary or secondary distribution conductor. The steel wire core and the outer aluminum wires provide an optimal balance between conductor strength and current carrying capacity, allowing for greater conductor currents at longer spans between supports. This conductor is often used as the messenger for multi conductor neutral supported conductor designs.

ACSR Construction

Aluminum alloy 1350-H19 wires concentrically stranded over a steel wire core. The steel wire core is Class A Zinc coated (Code GA2).

ACSR Specifications

These conductors are manufactured and tested to meet or exceed the following standards:

• ASTM B230 – Aluminum 1350–H19 Wire for Electrical Purposes
• ASTM B231 – Concentric-Lay-Stranded Aluminum 1350 Conductors
• ASTM B232 – Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
• ASTM B498 – Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors
• CSA C60888 – Zinc-coated steel wires for stranded conductors
• CSA C60889 – Hard-drawn aluminum wire for overhead line conductors
• CSA C61089 – Round wire concentric lay overhead electrical stranded conductors

ACSR Drake Specifications
