Zambia acsr conductor cable manufacturers in China
Prices of ACSR Conductor Cable Manufacturers in China to Lusaka, Zambia
PROJECT: Overhead transmission line
PRODUCT: ACSR Conductor 50mm(Rabbit) 100mm(Dog)
SERVICE: Quotation for the following: 1. ACSR Conductor 50mm(Rabbit) 6/1 2. ACSR Conductor 100mm(Dog) 7/4
HENAN QINGZHOU CABLE CO,.LTD
Add: West Industrial Park, Zhulin Town, Gongyi City, Henan Province, China.
Contact: Chloe E-mail: info@qingzhou-cable.com Mob & WhatsApp: +86-18625503172 Tel: +86-371-61176830
Web: www.qingzhou-cable.com
TECHNICAL SPECIFICATIONS | |||
| |||
No. | Description | Unit | Data |
A | ACSR Conductor | ||
1 |
Manufacturer's name |
HENAN QINGZHOU CABLE CO.,LTD | |
2 |
Code Name |
ACSR Rabbit | |
3 |
Sectional Area |
mm² |
50 |
4 |
Standard |
BS 215 | |
5 |

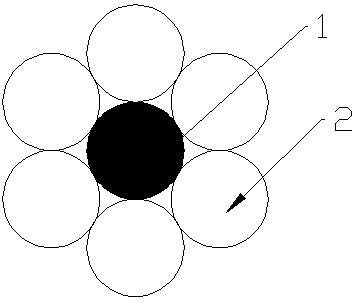

Construction | ||
5.1 Material of conductor |
Aluminium 1350-H19/ Galvanized Steel | ||
5.2 Number and diameter of wires | |||
5.2.1 Aluminum wire |
No/mm |
6/3.35 | |
5.2.2 Steel wire |
No/mm |
1/3.35 | |
5.3 Overall diameter of stranded conductor |
mm |
10.05 | |
6 |
Aluminum Wire | ||
6.1 DC Resistance at 20oC |
n Ω•m |
≤28.264 | |
6.2 Density at 20oC |
g/cm3 |
2.703 | |
6.3 Temperature co-efficient of resistance at 20oC |
/oC |
0.00403 | |
6.4 Broken load of Al wire before stranding |
N | ≥1030 | |
7 |
Steel Wire | ||
7.1 strength at 1% elongation |
N | ≥6980 | |
7.2 elongation(Lo=250mm) |
% |
≥3 | |
7.3 mass of zinc coating |
g/m2 |
≥215 | |
8 |
Conductor | ||
8.1 Mass of conductor |
kg/km |
214 | |
8.2 Electrical Resistance at 20°C |
ohm/km |
0.5426 | |
8.3 Rated strength of conductor |
kN |
18.35 |
